Welcome to Samarth PET Machineries

S2PI-B2-AE

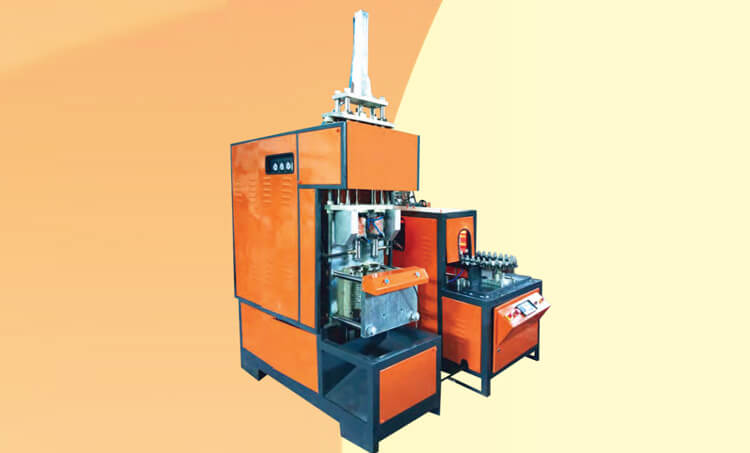

  1. SEMI AUTOMATIC PET BLOW MOULDING MACHINE
  • B2AE offers variety shapes of Bottle which are widely used in packing of several products such as Drinking Water, Honey, Edible Oil, Shampoo, Aromatic Oil, Creams, Cosmetic, Soda and other Hygiene Products.
  • B2AE manufactures 1200 – 1300 bottles per hour and offers a range from 30ml to 2litres
  • In case of sudden Power failure, Machine is equipped with a stand-by UPS system to run conveyor and electronic PLC for minimum 15 minutes. This function saves PLC from getting damaged due to power failure / fluctuation. Also the Preforms which are already in the heater can be blown till the time air is available in compressor thereby reducing the wastage of preforms

 Specification Unit S2PI-B2-AE
 Product Capacity ml 30 to 2000
 Neck Dia mm 19 to 30
 Max. Product Dia mm 95
 Max. Product Height mm 340
 Production Capacity Bottle/Hr. 1200 to 1300
 Cavity no 2
 Operating Pressure Kg 8 to 9
 Blowing Pressure Kg 25 to 32
 Heater Power Kw 12
 Running Power Consumption Kw 7 to 8
 Clamping Stroke mm 200
 Mould Platten Size mm 440X340X35
 Dist. Between  Tie Bar  mm 330
 Cavity Centre Distance mm 150
 Clamping Force ton 8
 Max.Mould  Thickness mm 160
 Min.Mould  Thickness mm 150
 Air Requirement cfm 37 to 42

“ In our endeavor to improve quality, product specifications and look may change without prior notice”
