India

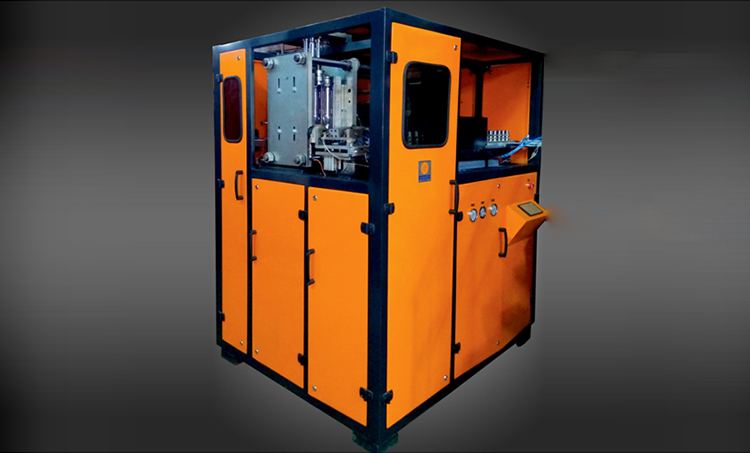

- FA4C-JMB-1 manufactures PET bottles & jars, which are being used for Mineral Water, Edible Oil, Pesticides, Pharmaceuticals, Carbonated Soft Drinks, Liquor, Cosmetics and Confectioneries.
- Production Capacity 3500 to 3600 bottles / hour for 19mm - 30mm neck diameter size.
- Machine equipped with JANATICS Pneumatic Cylinders, JANATICS Operating Valves, PARKER Blowing Valves, BRRIT locking cylinder and TRITEK Touch Screen- Programmable Logic controller (PLC).
| Specification | Unit | FA4C-JMB-1 |
| Product Capacity | ml | 60 to 1000 |
| Neck Dia | mm | 19 to 30 |
| Max. Product Dia | mm | 100 |
| Max. Product Height | mm | 300 |
| Production Capacity (19gms-1000ml-28mm) | bottles/hr | 3500-3600 |
| Number of Neck Holders | nos | 72 |
| Cavity | no | 4 |
| Power Consumption | kW | 26.5 |
| Operating Pressure | Kg | 8 to 10 |
| Blowing Pressure | Kg | 26 to 30 |
| No. of Heater (2Kw each) | no | 12 |
| Clamping Stroke | mm | 150 |
| Clamping Force | ton | 10 |
| Max.Mould Thickness | mm | 200 |
| Min.Mould Thickness | mm | 150 |
| Cavity Centre Distance | mm | 100 |
| Air Requirement (HP/LP) | cfm | 125/50 |
| Dimention of Machine | mm | 2250 X 2080 X 2415 |
| Weight of Machine (Approx) | kgs | 1400 |
“ In our endeavor to improve quality, product specifications and look may change without prior notice”
