India

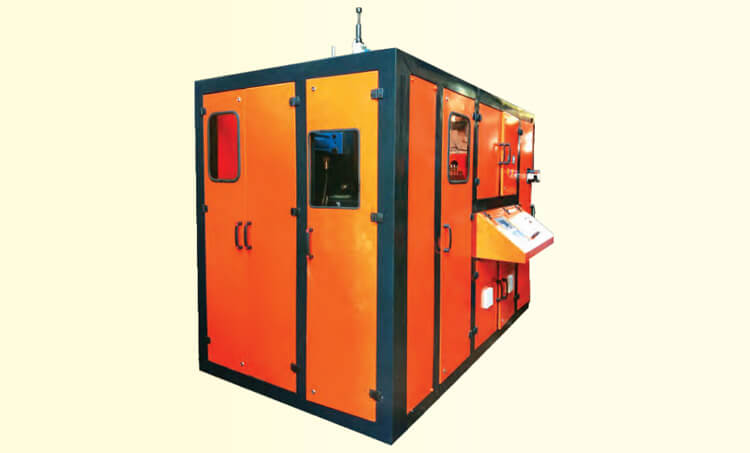

- SPM-FA2C-JMB-2 manufactures PET bottles & jars, which are being used for Mineral Water, Edible Oil, Pesticides, Pharmaceuticals, Carbonated Soft Drinks, Liquor, Cosmetics and Confectioneries
- Production Capacity 1800 to 2000 bottles / hour for 19mm - 30mm neck diameter size. Product Capacity 60ml to 2litre.
- Machine equipped with JANATIC pneumatic Cylinders, JANATICS operating valves, PARKER blowing valves, BRRIT locking cylinder and TRITEK Touch Screen- Programmable Logic controller (PLC).
| Specification | Unit | FA2C-JMB-2 |
| Product Capacity | ml | 60 to 2000 |
| Neck Dia | mm | 19 to 30 |
| Max. Product Dia | mm | 100 |
| Max. Product Height | mm | 340 |
| Production Capacity (19gms-1000ml-28mm) | bottles/hr | 1800-2000 |
| Number of Neck Holders | nos | 57 |
| Cavity | no | 2 |
| Power Consumption | kW | 16.5 |
| Operating Pressure | Kg | 6 to 8 |
| Blowing Pressure | Kg | 26 to 30 |
| No. of Heater (2Kw each) | no | 8 |
| Clamping Stroke | mm | 150 |
| Clamping Force | ton | 8 |
| Max.Mould Thickness | mm | 200 |
| Min.Mould Thickness | mm | 150 |
| Cavity Centre Distance | mm | 130 |
| Air Requirement (HP/LP) | cfm | 75/30 |
| Dimention of Machine | mm | 2150 X 1950 X 2415 |
| Weight of Machine (Approx) | kgs | 1300 |
“ In our endeavor to improve quality, product specifications and look may change without prior notice”
